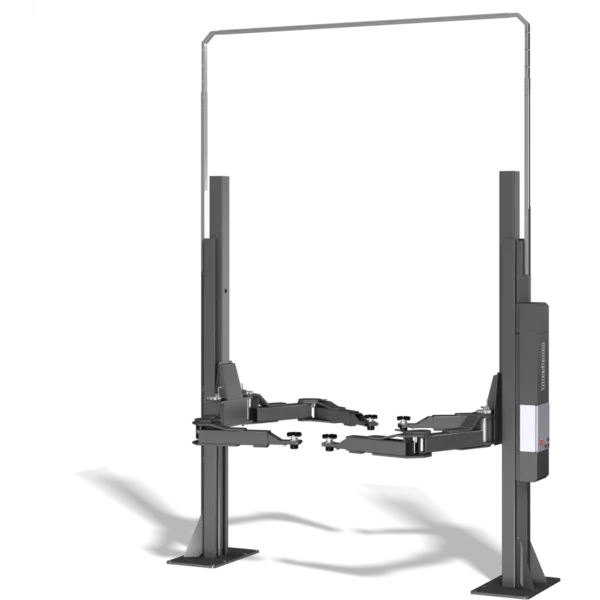

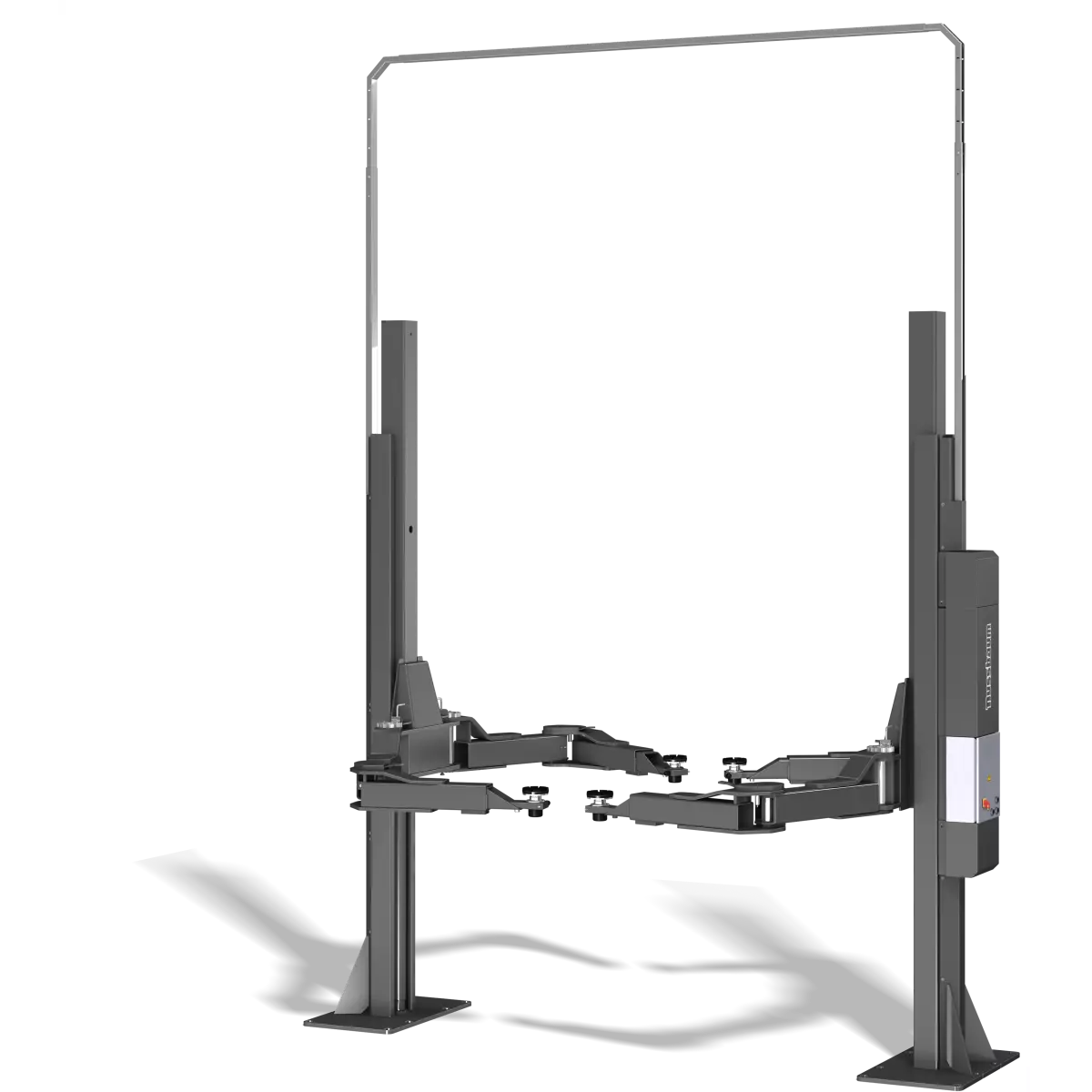

POWER LIFT HL 6500 SST DG

The hydraulic 2 post lifts POWER LIFT HL 6500 SST DG with a load capacity of 6500 kg and equipped with double jointed arms is a lift with high lifting capacity and flexibility for the versatile automotive workshop, that serves all vehicle types, from smallest cars to large vans. The POWER LIFT HL 6500 SST DG is equipped with Nussbaum’s patented SST Technology.

With the symmetrical telescopic double jointed arms, you can carry a wide range of vehicle sizes and weight classes from small cars such as SMART up to overlong vans such as MERCEDES-BENZ Sprinter and VW Crafter with long wheelbase lift. The arms are mounted on roller bearings for comfortable operation and are secured in the set position by a pneumatic locking mechanism.

The POWER LIFT HL 6500 SST DG is developed and produced by Nussbaum in Germany.

Load capacity: 6500 kg
The easy-to-use double-joint arms on roller bearings reach all the pick up points specified by the vehicle manufacturers
Operating unit on column
High safety: Mechanical locking at any lifting height
Low maintenance (no ropes, no ratchets)
Developed and manufactured in Germany
Recommended by MERCEDES-BENZ (for similar lift HDL 2.65 SST DG MB)

SST Technology

The Safety Star Technology (SST) monitors the synchronism of the two lifting columns to within a tenth of a millimeter. The mechanical interlock locks the arms automatically at any lifting height when the lift stops. A circulating ball nut sliding along the cylinder automatically locks the Lift.

By reducing the number of moving parts in the lift (no ropes, no safety latch) we have been able to reduce the maintenance effort of the POWER LIFT HL 6500 SST DG and thus reduce the running costs in the long run. The entire hydraulic system is safely and space-saving integrated into the Lift. The control unit has a clearly arranged electronic display. The columns and support arms are welded in Nussbaum’s own state-of-the-art welding facilities, shot-peened and subsequently grau powder-coated. Your lift is thus protected against dirt and weather in the long term. The design, the workmanship and the integrated hydraulic unit give the POWER LIFT HL 6500 SST DG an elegant overall appearance that unobtrusively supports the professional appearance of your workshop.

Scope of delivery

Lift with one power unit, top cable and hose routing, symmetrical 2-times telescopic double jointed support arms, roller bearing, telescopic turntables easily exchangeable in the arm
