| Art. | 305 | Technical Specifications |
|---|---|---|
| 230 V 50/60 Hz +15% / -20% | Alimentazione monofase | Single phase input |
| 16 A | Fusibile ritardato | Fuse rating (slow blow) |
| 5,5 kVA 20% 3,7 kVA 60% 2,7 kVA 100% |
Potenza assorbita | Input power |
| 20 ÷ 185 A | Corrente min.-max. ottenibile in saldatura | Min.-max. current that can be obtained in welding |
| 185 A 20% 140 A 60% 110 A 100% |
Fattore di servizio (10 min. 40°C) Secondo norme IEC 60974-1 |
Duty Cycle (10 min. 40°C) According to IEC 60974-1 |
| Electronic | Regolazione continua | Stepless regulation |
| 0,6/0,8/0,9/1,0 Fe 0,9 Cored 0,8/0,9 Inox 0,9/1,0 Al 0,8/0,9 CuSi3% |
Curve sinergiche in dotazione standard | Standard supplied synergic programs |
| Ø 200 mm/5 kg | Bobina filo trainabile max. | Max. wire spool size |
| IP23S | Grado di protezione | Protection class |
| 13,5 kg | Peso | Weight |
| 196x458x380 mm | Dimensioni (LxPxH) | Dimensions (WxLxH) |

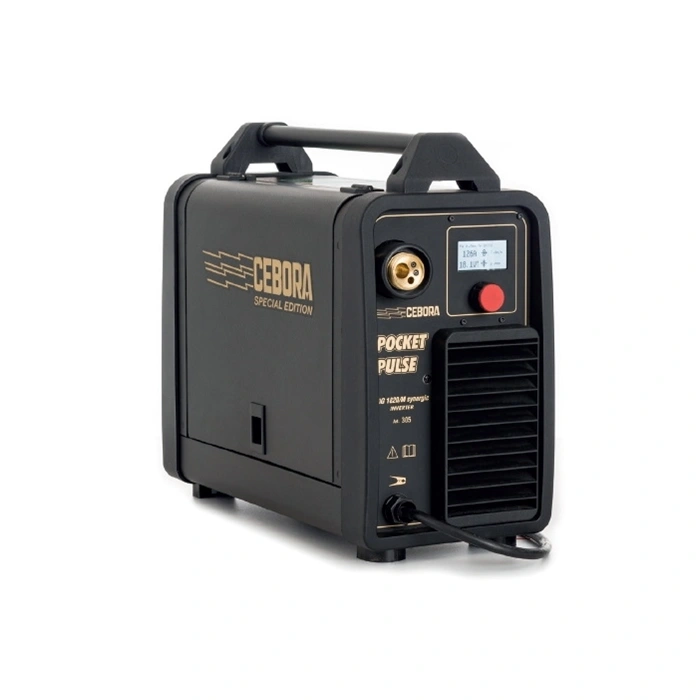

POCKET PULSE – Art. 305
MIG Welders, Welders
POCKET PULSE – Art. 305
POCKET PULSE Special Black & Gold Edition
POCKET PULSE Special Black & Gold Edition is a synergic inverter single phase (230V 50/60 Hz +15% / -20%) for MIG/MAG welding with SHORT and PULSE function included.
- User-friendly LCD Display
- 37 synergic curves including flux Cored welding
- Short and Pulse functions
- The lightest high-performance welding power source
