Q.DAS Standard ADAS Calibration

Q.DAS Standard ADAS Calibration

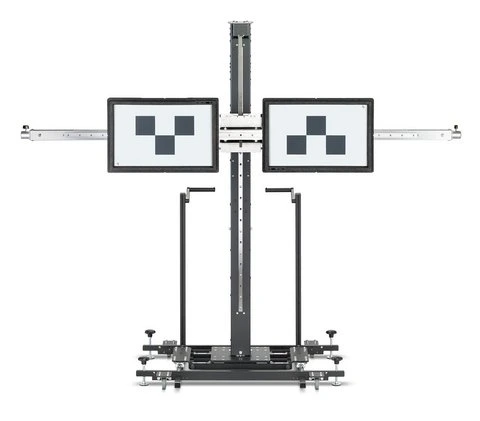

Q.DAS: OEM-compliant ADAS calibration in combination with wheel alignment

Q.DAS is a modular solution for the calibration of forward-facing, safety-relevant radar, camera and LIDAR systems.
Configure your system depending on the volume, budget and available space.

Q.DAS Standard:

  • Safety-relevant driver assistance systems: Radar and camera
  • Vehicle class: Cars
  • Calibration volume in the workshop: low to medium
  • Height adjustment: Motorized up to 1700 mm
  • Works with all camera calibration targets: Yes
  • Supports eTargets: Yes
  • Distance adjustment without re-leveling: 200 mm
  • Center offset adjustment without re-leveling: 200 mm
Category:

Advantages of the Q.DAS system:

1. Digital instead of analog:

  • Camera-based positioning via live display
  • No Plumb Bobs or measuring tapes
  • Full control over entire calibration
  • Direct specs instead of manual value transfer*

2. Wheel alignment and ADAS calibration as one process

  • No retooling
  • No moving of measuring devices
  • Permanently ready for use
  • Guided instructions for setup and positioning
  • Automatic compensation of different installation heights
  • Meets highest accuracy requirements of OEMs

3. Modular calibration solution for every workshop

  • Free choice of calibration targets and radar mirrors
  • Configuration according to calibration volume, budget and space conditions
  • No fixed commitment to only one diagnostic tester
  • Integrated X-Y slider minimizes leveling
  • Motorized height adjustment

Just a few steps to the right system for ADAS calibration

Scope of deliveries:

  • 1x Modular Q.DAS frame, without targets or radar mirrors
  • 1x Q.mApp software (Android) and license for activation (1 year)
  • 1x Digital Bluetooth laser distance gauge
