New Dimensions 3D

A “Made in Italy” 3D wheel alignment

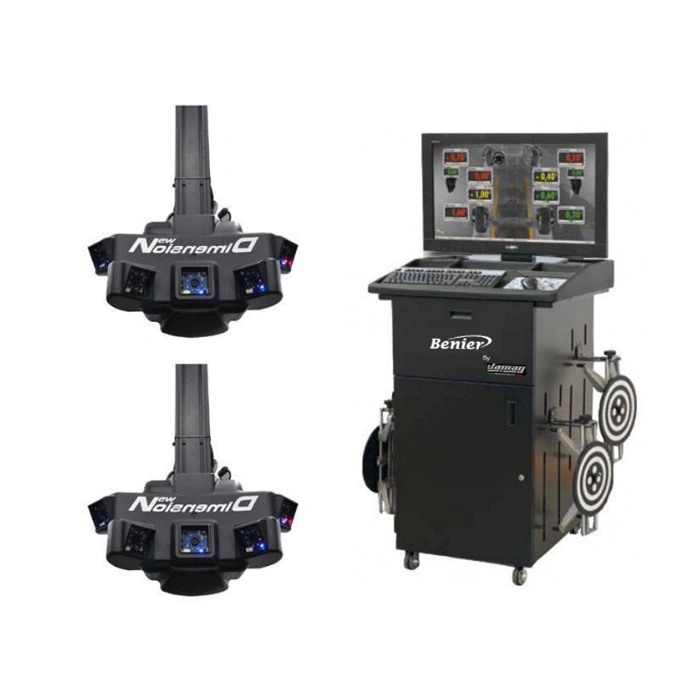

The 3D wheel alignment with 4 & 6 HD camera technology offers vehicle geometry control with maximum precision and speed of use. The installation system, thanks to the dedicated cantilever supports, ensures the operator’s maximum mobility in the working environment, both around the vehicle and the lift.

FAST, EASY, UNIQUE

No need to Run-Out
4&6 HD camera technology to check the geometry of vehicles up to 4.80 meters wheelbase, with maximum precision and rapidity of use

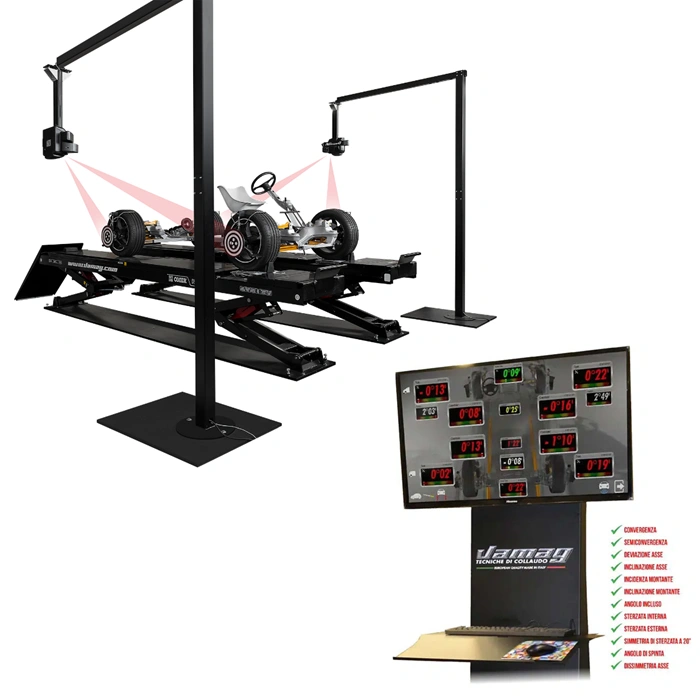

Ceiling or floor installation system designed to ensure maximum mobility for the operator in the work environment along the perimeter of the vehicle and the lift.
The cameras used auto-focus technology, automatic target acquisition and auto-adjustment of brightness to compensate for ambient light conditions.

NO MORE RUN-OUT

CLAMPS TO SUPPORT ON THE TIRE
Quick grip and resting on the tireSuper lightVery narrow widthReal Time ReadingNo metal-to-metal contactNo knobs to tighten

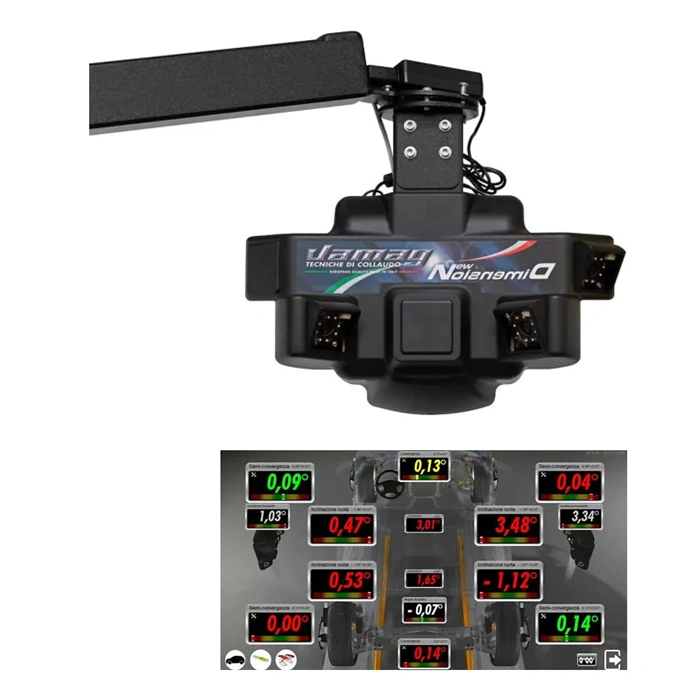

4 & 6 high-definition 3D cameras;
No space required, thanks to the lateral positioning of the cameras
Quick grip and resting on the tyre
No Runout (compensation)
Autodata database
floor, ceiling or wall installation

QUICK INSTALLATION

Speed up the preparation time, in a few seconds you can start adjustments. Just the time to go around the vehicle, apply the grips, and you are ready!

GOODBYE RUN-OUT AND DAMAGE TO THE RIMS

The grips applied to the tire eliminate the compensation procedure and never touch the rim.

EFFICIENT DESIGN.

The lightweight, durable, low-profile shape makes the grips perfect for all technicians. They are configured for all types of tire.

Configurations

Suitable for all work environments

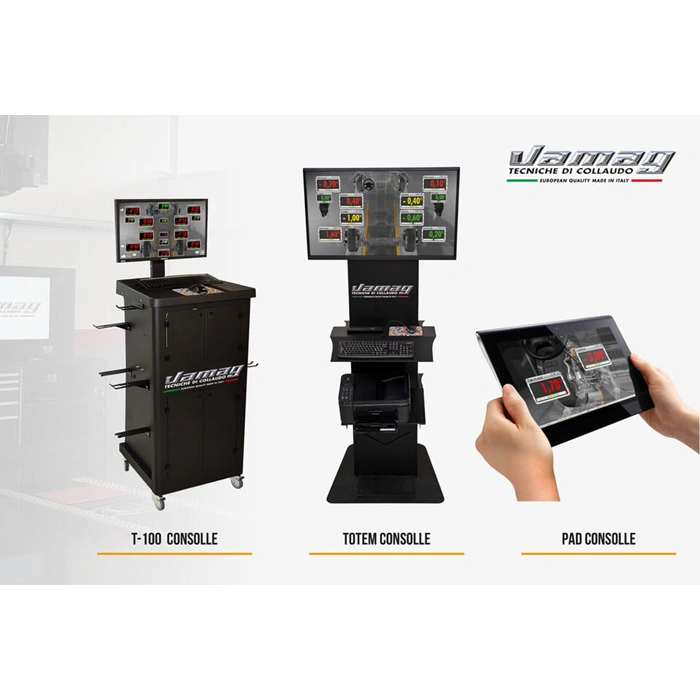

Alignment machines built to fit in any work environment. Ceiling or floor installation system designed to ensure maximum mobility in the work environment, along the entire perimeter of the vehicle and the lift. Combined with consoles with a unique design to meet every need.

BUILT-IN TRIM

A unique product for a single product

Integrated 3D system for aligning the geometric angles of motor vehicles on a 4-column lift.Once again, Vamag creates a flexible solution, paying the greatest attention to the needs of customers. A 4-column carlift that offers maximum flatness and stability, with 4.5 ton load capacity and auxiliary lift, with the 3D New Dimension integrated.

New Dimension® Alignment

Unique 3D software

Simple and intuitive proprietary software, with powerful 3D graphics, allows you to get a complete survey of all the characteristic angles in just a few clicks and compare the results with those in the integrated “Autodata” database.

ALWAYS UP TO DATE

Thanks to the integrated Live Update system, your setup will always be updated without having to place orders and without waiting for the times of other ways of updating, just a “Click”.

INCREASE OPPORTUNITIES

Increase opportunities with Vamag 3d Alignments

Most vehicles entering your company need to realign the vehicle’s trim. There are many reasons for this and usually incorrect alignment often leads to uneven tire wear, excessive fuel consumption and the lack of necessary safety when braking and driving. Lack of time and of proper equipment drives away many opportunities for your company and your customers.
