JUMBO LIFT 3500 HF X-Tend

By /
JUMBO LIFT 3500 HF X-Tend

JUMBO LIFT 3500 HF X-Tend

JUMBO LIFT 3500 HF X-Tend

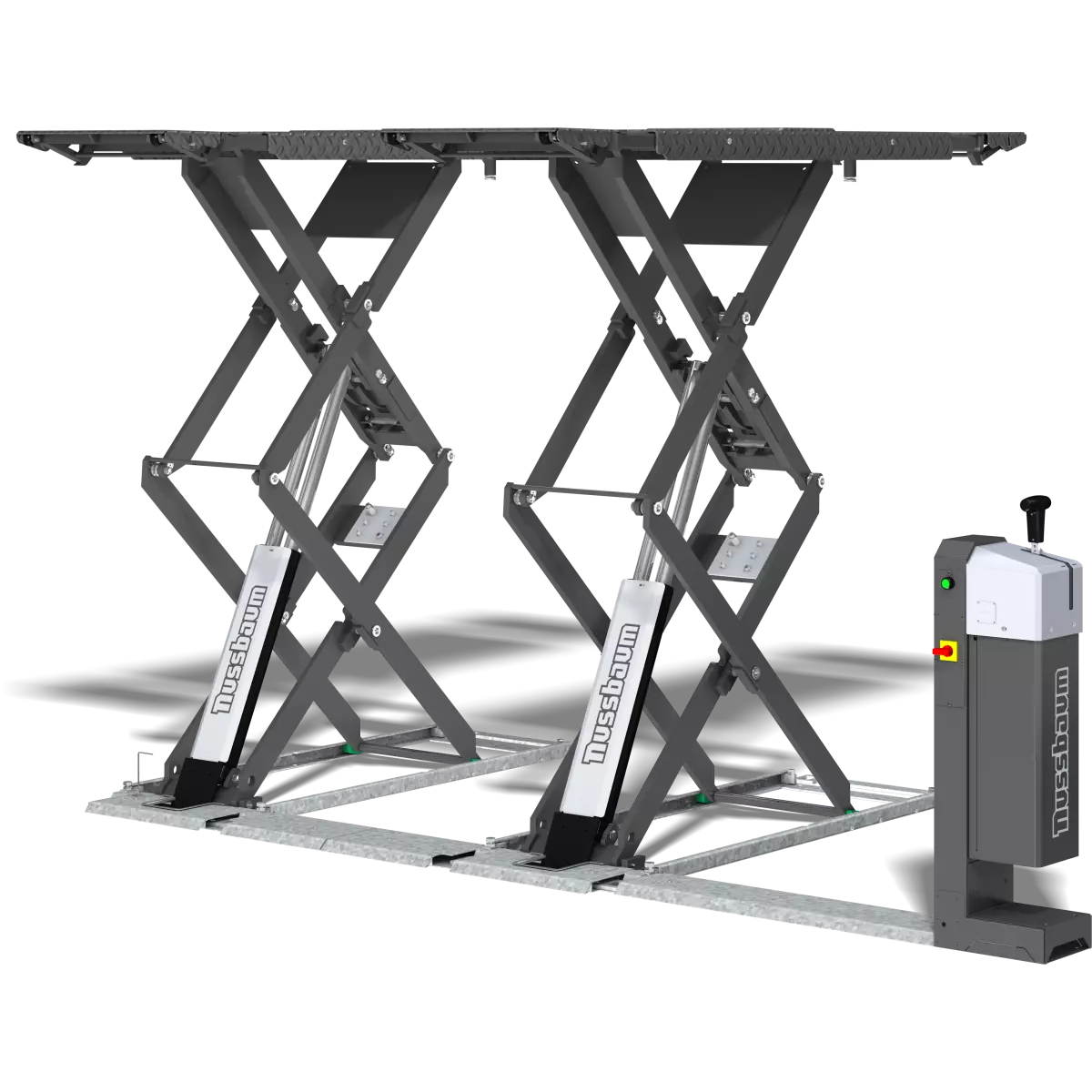

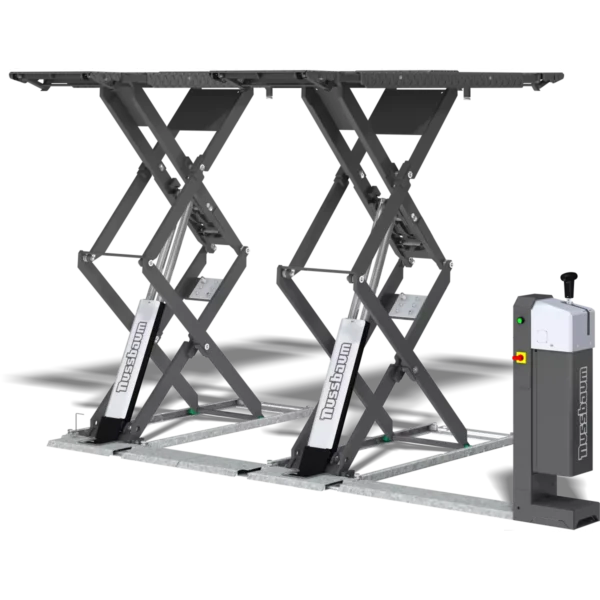

The hydraulic double scissor lift JUMBO LIFT 3500 HF X-Tend with a load capacity of 3500 kg is the perfect all-round lifting platform for the automotive workshop where speed, flexibility and reliability are in demand. With its small space requirement, its high lifting height of 2005 mm, and its two times adjustable platforms and flat design, it is the lift that no professional garage should be without. Whether for tire changes, oil changes, working on the engine, check-in inspection, for low-lying sports cars, SUVs or vehicles such as the new long BMW 7 Series, the JUMBO LIFT 3500 HF X-Tendis ready to lift and lifted at lightning speed. The lifting platforms can be extended twice: In addition to the foldable extensions available with the “classic” Jumbo Lift NT and the flexible installation width, the new Jumbo Lift HF X-Tend has extendable extensions. The length of the mounting platforms can be adjusted from 1550 – 2320 mm. The ramps can be locked and unlocked as usual in one simple movement. The JUMBO LIFT 3500 HF X-Tend is developed and manufactured by Nussbaum at its main plant in Kehl-Bodersweier in Baden-Württemberg.

  • Lifting time and lowering time: 35 seconds
  • Capacity: 3500 kg
  • Effective lifting height from 2005 mm
  • Extremely flat construction: Drive-on height of only 103 mm
  • Twice length-adjustable platform- Variable length of 1550 – 2320 mm
  • Flexible mounting: Adjustable width, no compressed air access required
  • 360° access
  • Two possible installation types: above ground (1) – inground (2)
  • Three times guaranteed quality: Power unit, hydraulic cylinder and the complete lifting platform are tested before dispatch.
  • Developed and manufactured in Germany
  • Recommended by BMW (for similar lifts Jumbo Lift 3200 NT, Jumbo Lift 4000 NT)
Category:

All hydraulic JUMBO LIFTS are equipped with two redundant hydraulic circuits as standard: Nussbaum’s patented NT hydraulic technology is complemented by HyperFlow® technology, introduced in 2016 and unique worldwide. HyperFlow® automatically balances the pressure of the hydraulic circuits at each full stroke. There is no need for manual compensation or maintenance.

With the “Nussbaum-Commander” we are the only manufacturer of lifting platforms in the world that can offer you a precise, variable lowering speed. The Nussbaum Commander enables sensitive lowering and allows the user to change and correct positions in no time at all, all with maximum safety. The JUMBO LIFT 3500 HF X-Tend is not only safe, but also exceptionally flexible and can be installed in different installation widths as required. You want to JUMBO LIFT 3500 HF X-Tend install flush with the floor?

The JUMBO LIFT 3500 HF X-Tend requires no compressed air at all. The four hydraulic cylinders require very little energy. The low power consumption, the continuous automatic compensation of the hydraulic circuits by the HyperFlow® system and the low maintenance requirements, also thanks to the reduced number of moving parts, reduce running costs. The operating lever “Nussbaum-Commander” is attached to the power unit integrated in a metal housing. The control unit is connected to the lift only by the hydraulic hoses and can be positioned freely around the lift. The hydraulic hoses can be mounted on the workshop floor or in a protective metal housing on the floor as required. The double scissors are welded in Nussbaum’s own state-of-the-art welding facilities, shot-peened and subsequently grau powder-coated. Your lifting platform is protected against dirt and weather for a long time.



Scope of delivery

Lift with powder-coated platform, CE-Stop, compact underoil motor, can be installed on left or right side, length of hydraulic lines 1 m, 1 set = 4 pieces superductile polymer supports 50 x 150 x 340 mm
