CRS4600 - In-Ground
,

CRS4600 – In-Ground

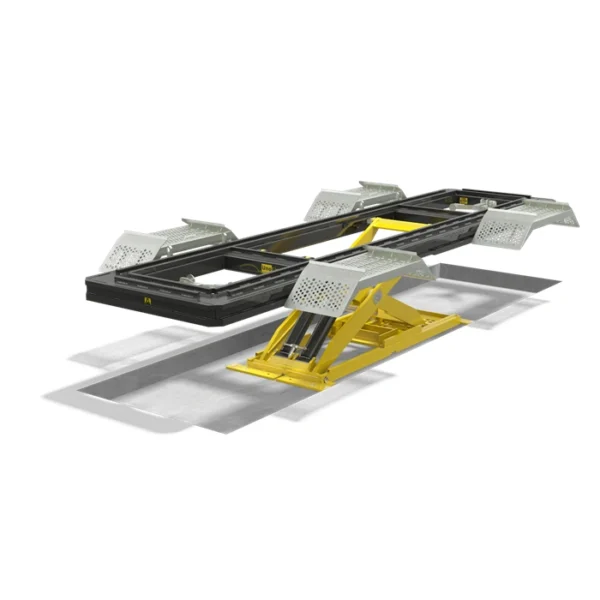

The UnoLiner CRS4600 In-Ground is a perfect blend between the 4 and the 5.5 meter chassis straightening bench, mounted level with the workshop floor. This in-ground straightening bench boasts a bench frame length of 4.6 meters and is suitable for the L30 and L36 lift, offering its user a choice between a lifting capacity of 3000 kg and 4600 kg. The two-way locking variant, the CRS4600T, allows for more versatile accessory placement. CRS4600 benches are suitable for cars of all sizes, MPVs, SUVs, crossovers, pickup trucks, all-terrain vehicles, and light commercial vehicles. It is an ideal straightening, alignment, and collision repair bench, which can also be used as a multifunctional vehicle maintenance and general repair worksite.

Features

  • 3 or 4.6 ton lifting capacity
  • Level with the ground in its lowest position
  • Multiple-angle 10-ton pulling ability
  • Interchangeable UnoLiner accessories
  • Mechanical and hydraulic safety systems
  • Two-way locking variant

Technical data

  • Bench frame length : 4610 mm
  • Bench frame width : 1040-1160 mm
  • Min. bench height : 0-30 mm
  • Max. bench height : 1060-1130 mm
  • Max. load weight : 3000-4600 kg
  • Width incl. ramps : 1960-2080 mm
Categories: ,
Information

While the bench height itself is 17.5 cm, installing the sides of the bench level with the ground ensures any car can easily be driven onto it. This bench is compatible with all UnoLiner accessories and tooling. The CRS4600 In-Ground set includes an F46 Bench Frame with an L30 or L36 Scissor Lift, 1x R15 Drive-On Ramp Set, 4x C10 Quick-Lock Universal Chassis Clamps, 4x B10 Bench Adapters or B10T Bench Adapters, 4x H20 Wheel Stand or H25L Wheel Stand, 1x P10 Draw Aligner Pulling Tower, and 1x F1030-L Bench Height Set.
