| Model | BAAL-9ASBLPL |
| Feature | Pneumatic / Electric safety locking system (option) |
| Lifting Capacity | 4000 KG (8,840 lbs) |
| Lifting Height | 1850 mm (72.8″) |
| Platform Height | 128 mm (4.4″) |
| Platform Length | 4500 mm (177″) – 5000 mm (196.9″) |
| Drop Time | 75s |
| Rise Time | 60s |
| Power of Motor | 20V/380V 1/3 PHASE |
| Power Supply | 2.2kw |

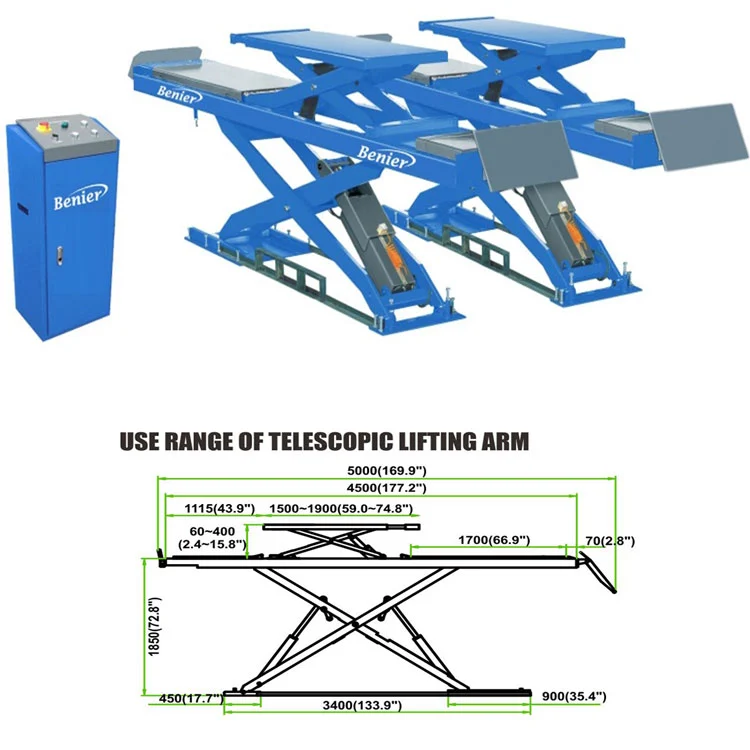

BAAL-9ASBLPL
Alignment Scissor Lift, Car Lifts, Wheel Alignment Lifts
BAAL-9ASBLPL
Silent Feature :
- This is a flush mounted large low height vehicle lift for alignment service with 4000 KG
- lifting capacity for main unit, 2000 KG lifting capacity for the rolling jack.
- 245 mm minimum height, 1750 mm lifting height for main unit, 490 mm lifting height for the rolling jack.
- Adjustable width between two platforms suits for various vehicle’s track width.
- Durable steel one-piece runway.
- Mechanical lock engaged automatic lifting process.
