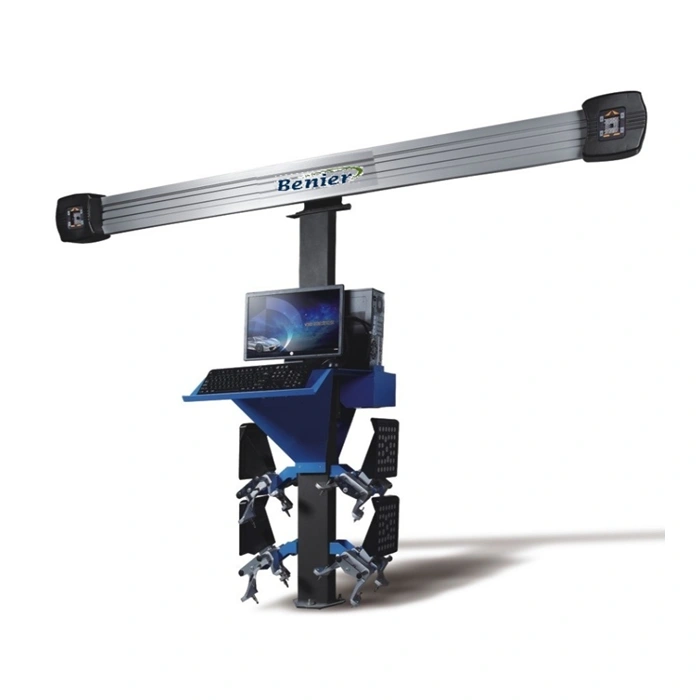

BA-V3DI

By /
BA-V3DI
,

BA-V3DI

Specification :

  • Easy to operate with guiding menu, to read alignment database within 3 minutes.
  • The fault of machine can be reduced as no electric element & battery & transmission cable & Bluetooth & infrared ray.
  • Calibration made before delivery, convenient to install and use, no influenced by working site.
  • Set with Volkswagen dedicated application, can measure toe- arc for A6, B5.
  • 26 kinds of language for different countries and districts.
  • Suit for measurement of vehicle with super-low chassis.
  • Integrative cabinet, simple but perfect.
  • 2500 vehicle database, online updating
Categories: ,
Technical Features Accuracy Measuring range Total measuring range
Front Axle
Toe +/-0.02° +/-2.4° +/-4.8°
Camber +/-0.02° +/-10° +/-10°
Caster Angle +/-0.05° +/-10° +/-10°
King Pin Caster Angle +/-0.02° +/-20° +/-20°
Rear Axle
Rear Axle Offset +/-0.02° +/-2° +/-4°
Max. Steering Angle +/-0.08° +/-25° +/-45°
Thrust Angle +/-0.02° +/-2° +/-4°
Track with Difference +/-0.03° +/-2° +/-8°
Front Set Back +/-0.02° +/-2° +/-4°
Rear Set Back +/-0.02° +/-2° +/-4°
Track Width +/-0.64 cm (0.25 in) <265 cm (105 in) <265 cm (105 in)
Wheel Base +/-0.64 cm (0.25 in) <533 cm (210 in) <533 cm (210 in)
