BLTPL-9S

Silent Feature:

  • Manual release from one side, just operate the handle on main column side to release safety lock.
  • Equip height limit switch to ensure the lifting height safely, prevent the vehicle roof from damaging.
  • Equalization of two steel cables force both sliding blocks to move synchronously, effectively prevent the vehicle from tilting.
  • Minimum height of the lifting pad is 110 mm, easily lift and suitable for low profile cars and SUV.
  • Equip aluminum motor and car door-opening protection as standard configuration.
  • Reliable oil cylinder, adopts chrome-plating honed
  • cylinder and piston rod, with Italian seals on hydraulic rams, ensure long service life
  • Passed 115% dynamic test and 150% static test

BLTPL-9S

Silent Feature:

  • Manual release from one side, just operate the handle on main column side to release safety lock.
  • Equip height limit switch to ensure the lifting height safely, prevent the vehicle roof from damaging.
  • Equalization of two steel cables force both sliding blocks to move synchronously, effectively prevent the vehicle from tilting.
  • Minimum height of the lifting pad is 110 mm, easily lift and suitable for low profile cars and SUV.
  • Equip aluminum motor and car door-opening protection as standard configuration.
  • Reliable oil cylinder, adopts chrome-plating honed
  • cylinder and piston rod, with Italian seals on hydraulic rams, ensure long service life
  • Passed 115% dynamic test and 150% static test

Specification

LiftingCapacity*​
10,000 lbs. / 4536 kg
*Max Capacity / Front Axle
5,000 lbs. / 2268 kg
*Max Capacity / Rear Axle
5,000 lbs. / 2268 kg
A - Height Overall: (*)
145" / 3,683 mm
B - Width Overall - NARROW CONFIGURATION
132" / 3,353 mm
B - Width Overall - WIDE CONFIGURATION
145" / 3,683 mm
C - Width Outside of Columns: (NARROW CONFIGURATION)
126-3/4" / 3,225 mm
C - Width Outside of Columns: (WIDE CONFIGURATION)
139-3/4" / 3,555 mm
D - Floor To Overhead Switch: (*)
141" / 3,581 mm*
E- Inside Columns: (NARROW CONFIGURATION)
105.5" / 2,680 mm
E - Inside Columns: (WIDE CONFIGURATION)
118.5" / 3,010 mm

BLTPL-XPR 10S

Silent Feature:

  • 10,000‐lb lifting capacity
  • Expandable top beam accommodates wide or narrow drive‐thru configuration
  • Double‐telescoping screw pads offer increased versatility
  • Padded overhead safety shutoff bar Telescoping arm design for more versatile arm positioning
  • Single‐piece columns
  • Single‐point safety release
  • Drop‐end arms provide a lower pad height
  • Dual hydraulic direct‐drive cylinders
  • Oversized 53″ tall carriage for superior strength and durability
  • Electric / hydraulic power system
  • Large, 17″ x 19″ A36 steel base plate
  • Self‐lubricating dura‐glide UHMW polyethylene bearing system
  • Safety locks in each column spaced every 3“
  • Automatic arm restraints
  • Heavy‐duty 1/2″ aircraft‐quality equalizer cables
  • Oversized cable sheave diameter reduces cable fatigue
  • 4‐piece 63mm stackable adapter set comes standard
  • Triple‐telescoping front arms
  • ALI Approved.

BLTPL-9S

Silent Feature:

  • Manual release from one side, just operate the handle on main column side to release safety lock.
  • Equip height limit switch to ensure the lifting height safely, prevent the vehicle roof from damaging.
  • Equalization of two steel cables force both sliding blocks to move synchronously, effectively prevent the vehicle from tilting.
  • Minimum height of the lifting pad is 110 mm, easily lift and suitable for low profile cars and SUV.
  • Equip aluminum motor and car door-opening protection as standard configuration.
  • Reliable oil cylinder, adopts chrome-plating honed
  • cylinder and piston rod, with Italian seals on hydraulic rams, ensure long service life
  • Passed 115% dynamic test and 150% static test

Specification

LiftingCapacity*​
10,000 lbs. / 4536 kg
*Max Capacity / Front Axle
5,000 lbs. / 2268 kg
*Max Capacity / Rear Axle
5,000 lbs. / 2268 kg
A - Height Overall: (*)
145" / 3,683 mm
B - Width Overall - NARROW CONFIGURATION
132" / 3,353 mm
B - Width Overall - WIDE CONFIGURATION
145" / 3,683 mm
C - Width Outside of Columns: (NARROW CONFIGURATION)
126-3/4" / 3,225 mm
C - Width Outside of Columns: (WIDE CONFIGURATION)
139-3/4" / 3,555 mm
D - Floor To Overhead Switch: (*)
141" / 3,581 mm*
E- Inside Columns: (NARROW CONFIGURATION)
105.5" / 2,680 mm
E - Inside Columns: (WIDE CONFIGURATION)
118.5" / 3,010 mm

Specification

LiftingCapacity*​
10,000 lbs. / 4536 kg
*Max Capacity / Front Axle
5,000 lbs. / 2268 kg
*Max Capacity / Rear Axle
5,000 lbs. / 2268 kg
A - Height Overall: (*)
145" / 3,683 mm
B - Width Overall - NARROW CONFIGURATION
132" / 3,353 mm
B - Width Overall - WIDE CONFIGURATION
145" / 3,683 mm
C - Width Outside of Columns: (NARROW CONFIGURATION)
126-3/4" / 3,225 mm
C - Width Outside of Columns: (WIDE CONFIGURATION)
139-3/4" / 3,555 mm
D - Floor To Overhead Switch: (*)
141" / 3,581 mm*
E- Inside Columns: (NARROW CONFIGURATION)
105.5" / 2,680 mm
E - Inside Columns: (WIDE CONFIGURATION)
118.5" / 3,010 mm
F - Reach (Front Arm Min.):
27-1/2" / 698 mm
G - Reach (Front Arm Max.):
51-1/2" / 1,308 mm
H - Reach (Rear Arm Min.):
34" / 863 mm
I - Reach (Rear Arm Max.):
54-1/2" / 1,384 mm
J - Min. Pad Height:
4.25" – 6-3/4” / 108 mm
K - Rise:
69" / 1,753 mm
L - Max Lift Height (Screw Pad Only):
73" - 75" / 1,854 – 1,905 mm
M - Max Lift Height ( Screw Pad & 63mm Adapter)
75.5" - 77.5" / 1,917 mm – 1,968 mm
N - Drive-Thru Clearance: (NARROW CONFIGURATION)
93" / 2,362 mm
N - Drive-Thru Clearance: (WIDE CONFIGURATION)
106" / 2,692 mm.
Screw Pad Adjustment:
2” / 51 mm.
Motor (**)
220 VAC / 60 Hz / 1 Ph
Time of full Rise:
45 Sec
Max Load Per Arm:
2,500 lbs. / 1,134 kg

BLTPL-XPR 10AS

Salient features:

  • 10,000‐lb lifting capacity
  • Expandable top beam accommodates wide or narrow drive‐thru configuration
  • Double‐telescoping screw pads offer increased versatility
  • Added overhead safety shutoff bar
  • Exclusive Tru‐Metric arm design for more versatile arm positioning
  • 30° rotated Single‐piece columns
  • Single‐point safety release
  • Drop‐end arms provide a lower pad height
  • Dual hydraulic direct‐drive cylinders
  • Oversized 53″ tall carriage for superior strength and durability
  • Electric / hydraulic power system
  • Large, 17″ x 19″ A36 steel base plate
  • Self‐lubricating dura‐glide UHMW polyethylene bearing system
  • Safety locks in each column spaced every 3“
  • Automatic arm restraints
  • Heavy‐duty 1/2″ aircraft‐quality equalizer cables
  • Oversized cable sheave diameter reduces cable fatigue
  • 4‐piece 63mm stackable adapter set comes standard
  • Triple‐telescoping front arms
  • ALI Approved.

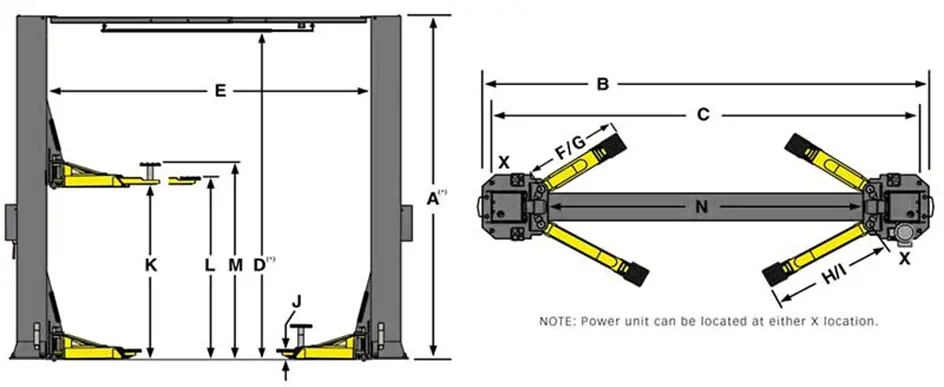

Specification

LiftingCapacity*​
10,000 lbs. / 4536 kg
*Max Capacity / Front Axle
5,000 lbs. / 2268 kg
*Max Capacity / Rear Axle
5,000 lbs. / 2268 kg
A - Height Overall: (*)
145" / 3,683 mm
B - Width Overall - NARROW CONFIGURATION
137" / 3,480 mm
B - Width Overall - WIDE CONFIGURATION
145" / 3,683 mm
C - Width Outside of Columns: (NARROW CONFIGURATION)
133" / 3,378 mm
C - Width Outside of Columns: (WIDE CONFIGURATION)
141"/ 3,581 mm
D - Floor To Overhead Switch: (*)
141" / 3,581 mm*
E- Inside Columns: (NARROW CONFIGURATION)
104" / 2,642 mm
E - Inside Columns: (WIDE CONFIGURATION)
112" / 2,845 mm
F - Reach (Front Arm Min.):
23-1/2" / 597 mm
G - Reach (Front Arm Max.):
45-1/2" / 1,156 mm
H - Reach (Rear Arm Min.):
45-1/2" / 1,079 mm
I - Reach (Rear Arm Max.):
60" / 1,524 mm
J - Min. Pad Height:
4.25" – 6-3/4” / 108 mm
K - Rise:
69" / 1,753 mm
L - Max Lift Height (Screw Pad Only):
73" - 75" / 1,854 – 1,905 mm
M - Max Lift Height ( Screw Pad & 63mm Adapter)
75.5" - 77.5" / 1,917 mm – 1,968 mm
N - Drive-Thru Clearance: (NARROW CONFIGURATION)
94" / 2,388 mm
N - Drive-Thru Clearance: (WIDE CONFIGURATION)
102" / 2,591 mm.
Screw Pad Adjustment:
2” / 51 mm.
Motor (**)
220 VAC / 60 Hz / 1 Ph
Time of full Rise:
45 Sec
Max Load Per Arm:
2,500 lbs. / 1,134 kg

BLTPL-XPR 9SF

Salient features:

  • Manual release from two sides, double insurance self-locking protection device, safe and easy to operate.
  • Equalization of two steel cables force both sliding blocks to move synchronously, effectively prevent the vehicle from tilting
  • Minimum height of the lifting pad is 110 mm, easily lift and suitable for low profile cars and SUV.
  • Equip aluminum motor and car door-opening protection as standard configuration.
  • Reliable oil cylinder, adopts chrome-plating honed cylinder and piston rod, with Italian seals on hydraulic rams, ensure long service life
  • Passed 115% dynamic test and 150% static test

Specification

Model
BLTPL-XPR 9SF
Feature
Manual release
Lifting Capacity
4000kg (8840 lb)
Lifting Height
1800mm (70.9″)
Machine Height
2824mm (111.2″)
Machine Width
2576mm (101.4″)
Power of Motor
2.2kw
Power Supply
20V/380V 1/3 PHASE
Rise Time
50s
Drop Time
22s
